New bevel gear Black Arrow 03-07-2012

We present new transmissions conic we have developed for you. Attack of the teeth is conical, so that a transmission is accomplished more efficiently, improving the performance of any other transmissions on the market.

Our premise in designing this new transmission has always been to respect the module in this way, you always get the best offense in any configuration of number of teeth. Therefore, the crown is composed of two parts. Teeth on one side and the other the "core" that is responsible of center the crown with the motor shaft and fix it on the rear axle. This means you must adjust the mesh of the crown with the pinion, much like the R / C. A proper fit is essential for proper operation. We have designed a plastic spacers technical calibrations performed, allowing close or separate the crown of the pinion to use different gears available.

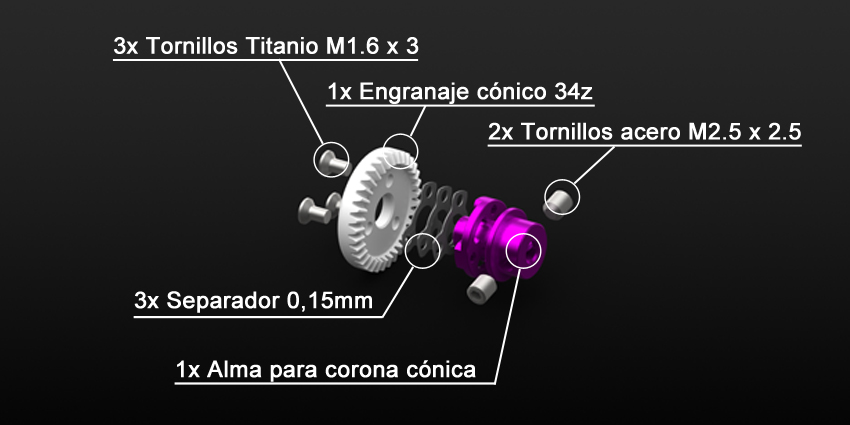

You can see in this exploded view of each crown 10 pcs in total, which include: titanium screws, reinforced Nylon gear , aeronautical aluminum core , technical plastic gauged spacers, etc ...

We currently have two gears, one of 13 teeth and another of 14 teeth and 2 crowns, one of 34 teeth and another with 37 teeth. Combining these four relations, we have a range of possibilities according to the most commonly used in competition in both track and rallies.

Here you can see the gear ratios are available:
13Z + 37Z = 2.846
14Z + 37Z = 2.642
13Z + 34Z = 2.615
14Z + 34Z = 2.428

We strongly recommend this transmission, both on track and rally.

You will note a significant difference compared with other transmissions on the market.

Our transmission is standard in all our models in-line available.

The following link you can purchase our transmission:

blackarrow.d218.dinaserver.com/productos-c-2-transmision

See you!

Black Arrow Team
